A1313 1W
For more product information, please contact the sales department to obtain

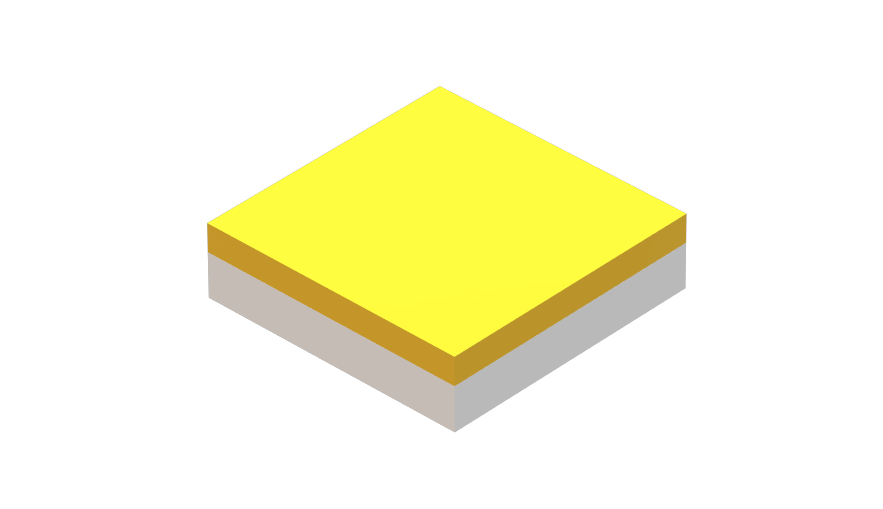

A1313 CSP adopts Flip Chip, independently developed by Aucksun, a high brightness, low-power CSP LED specially designed for car HUD backlight, which can achieve high quality, high brightness backlight effect. The CSP LED has a smaller luminous surface and lower package height, making them more advantageous for secondary light distribution of lenses compared to traditional automotive HUD backlight packages such as 3030 and 3014.

  • Product images
  • Applicable scenarios
Product advantages
  • Five sided light output, large angle
  • Composite packaging, better light output efficiency
  • No bracket packaging, lower thermal resistance
  • Integrated fluorescence film making process, good color zone concentration, and small color drift
Product features
  • Chip scale packaging, single-sided light output
  • 1.30 * 1.30 * 0.33mm
  • suitable for SMT mounting
  • Packaging method: blue film/reel
Application area
  • Automotive HUD backlight
  • TV backlight
